The Prefabricated Houses produced by our factory are easily assembled and disassembled, convenient for transportation, and suitable for various construction sites as offices, worker dormitories, as well as temporary buildings and warehouses. Yilong Integrated Factory has over a decade of experience in manufacturing and selling Prefabricated House, with a comprehensive after-sales service system to provide customers with all-round technical support and maintenance services, fully guaranteeing customer rights. If you would like to learn more about mobile housing, please feel free to contact us.

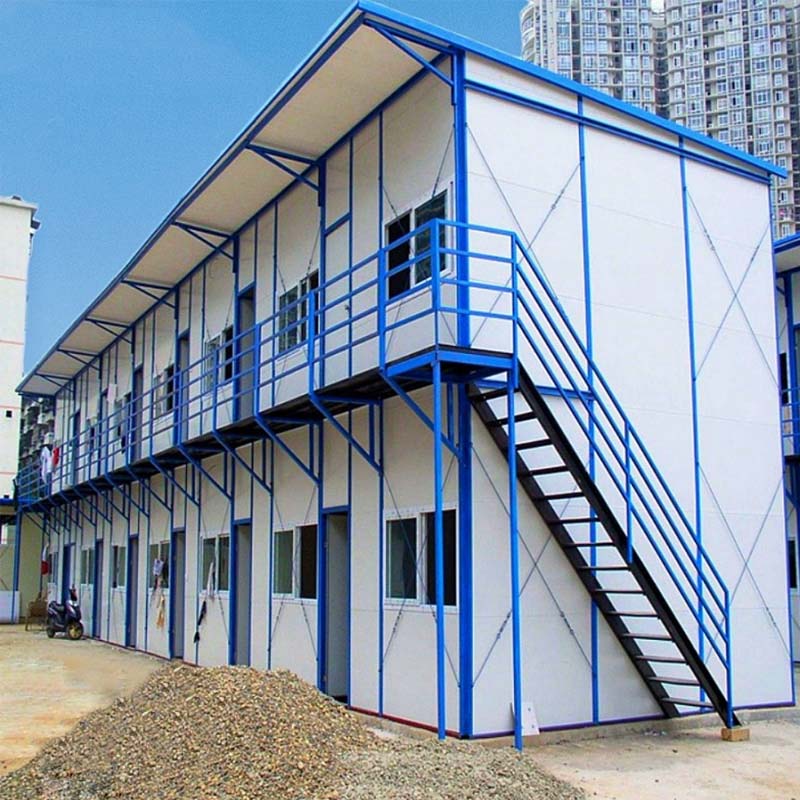

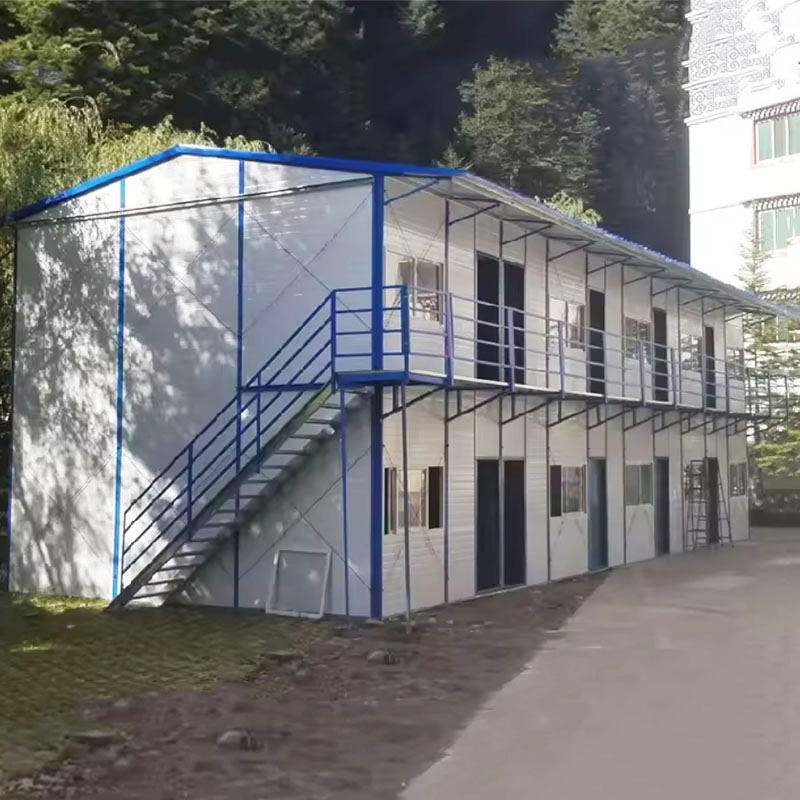

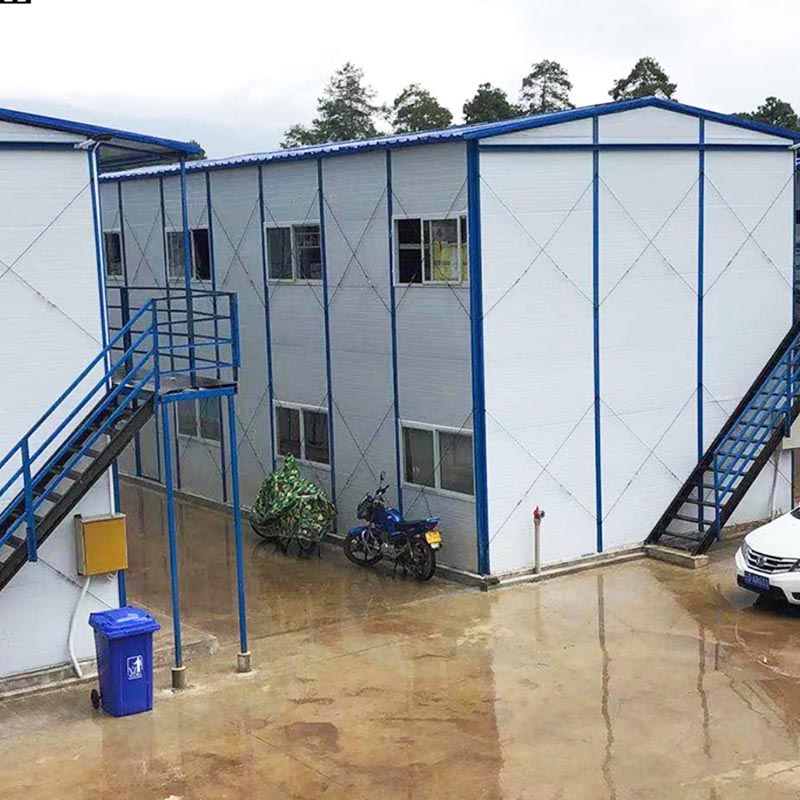

The Prefabricated houses produced by Yilong Integrated Housing Factory are constructed with color steel sheets as the framework and sandwich panels as enclosure materials. They are designed based on standard modular series for spatial integration. Components are connected with bolts, creating a new concept of environmentally friendly and economical Prefabricated Houses. These Prefabricated House can be quickly and easily assembled and disassembled, establishing universal standardization for temporary construction, promoting eco-friendly, energy-efficient, and efficient building concepts. This approach allows temporary housing to enter a realm of standardized development, integrated production, supply chain support, inventory availability, and multi-use applications. These Prefabricated Houses can be conveniently assembled and disassembled, facilitating transportation and mobility, and are suitable for placement in various terrains such as hillsides, grasslands, deserts, and riversides. Customization is available according to customer requirements, with exquisite and elegant designs, with most of the structure of the Prefabricated House completed at Yilong Integrated Factory.
Standard configuration stairs, with one double story on each side of the mountain wall andfour staircases on each side 5m2, each staircase on the third floor is 16.4m2. When adding or subtracting stairs, this number can be used. Unit: m2
| Single layer (3P) | Double layer (6P) | Three layers (9P) | |||||||
| K | 3K | 4K | 5K | 3K | 4K | 5K | 3K | 4K | 5K |
| 4K | 45.53 | 59.07 | 77.61 | 103.79 | 130.87 | 157.95 | 176.84 | 217.46 | 258.08 |
| 5K | 56.67 | 73.52 | 90.38 | 126.97 | 160.68 | 194.39 | 212.07 | 262.63 | 313.19 |
| 6K | 67.81 | 87.98 | 108.14 | 150.16 | 190.49 | 230.82 | 247.31 | 307.81 | 368.3 |
| 7K | 78.95 | 102.43 | 125.9 | 173.35 | 220.3 | 267.26 | 282.54 | 352.98 | 423.41 |
| 8K | 90.09 | 116.88 | 143.67 | 196.53 | 250.11 | 303.69 | 317.78 | 398.15 | 478.52 |
| 9K | 101.22 | 131.33 | 161.43 | 219.72 | 279.93 | 340.13 | 353.01 | 443.32 | 533.63 |
| 10K | 112.36 | 145.78 | 179.19 | 242.91 | 309.74 | 376.57 | 388.25 | 488.50 | 588.74 |
| 11K | 123.50 | 160.23 | 196.96 | 266.09 | 339.55 | 413.00 | 423.48 | 533.67 | 643.85 |
| 12K | 134.64 | 174.68 | 214.72 | 289.28 | 369.36 | 449.44 | 458.72 | 578.84 | 698.96 |
| 13K | 145.78 | 189.13 | 232.48 | 312.47 | 399.17 | 485.88 | 493.96 | 624.01 | 754.07 |
| 14K | 156.92 | 203.58 | 250.25 | 335.65 | 428.98 | 522.31 | 528.19 | 669.18 | 809.18 |
| 15K | 166.06 | 218.03 | 268.01 | 358.84 | 458.79 | 558.75 | 564.43 | 714.36 | 864.29 |
| 16K | 179.19 | 232.48 | 285.77 | 382.03 | 488.61 | 595.19 | 599.66 | 759.53 | 919.40 |
| 17K | 190.33 | 246.93 | 303.54 | 405.21 | 518.42 | 631.62 | 634.90 | 804.70 | 974.51 |
| 18K | 201.47 | 261.38 | 321.30 | 428.40 | 548.23 | 668.06 | 670.13 | 849.87 | 1029.62 |
| 19K | 212.61 | 275.84 | 339.06 | 451.59 | 578.04 | 704.49 | 705.37 | 895.05 | 1084.73 |
| 20K | 223.75 | 290.29 | 356.83 | 474.77 | 607.85 | 740.93 | 740.60 | 940.22 | 1139.84 |
| 21K | 234.89 | 304.74 | 374.59 | 497.96 | 637.66 | 777.37 | 775.84 | 985.39 | 1194.95 |
| 22K | 246.02 | 319.19 | 392.35 | 521.15 | 667.48 | 813.80 | 811.07 | 1030.56 | 1250.06 |
| 23K | 257.16 | 333.64 | 410.12 | 544.33 | 697.29 | 850.24 | 846.31 | 1075.74 | 1305.17 |
| 24K | 268.30 | 348.09 | 427.88 | 567.52 | 727.10 | 886.68 | 881.54 | 1120.91 | 1360.28 |
| 25K | 279.44 | 362.54 | 445.64 | 590.71 | 756.91 | 923.11 | 916.78 | 1166.08 | 1415.38 |
| 26K | 290.58 | 376.99 | 463.40 | 613.90 | 786.72 | 959.55 | 952.01 | 1211.25 | 1470.49 |
| 27K | 301.72 | 391.44 | 481.17 | 637.08 | 816.53 | 995.99 | 987.25 | 1256.43 | 1525.60 |
| 28K | 312.85 | 405.89 | 498.93 | 660.70 | 846.35 | 1032.42 | 1022.48 | 1301.60 | 1580.71 |
| 29K | 323.99 | 420.34 | 516.69 | 683.46 | 876.16 | 1068.86 | 1057.72 | 1346.77 | 1635.82 |
| 30K | 335.13 | 434.79 | 534.46 | 706.64 | 905.97 | 1105.30 | 1092.95 | 1391.94 | 1690.93 |
1. The area of the prefabricated house is calculated based on the outer wall side length X width X number of floors
2. Stairs and corridors are calculated based on the sum of the natural floor projection areas
3. Canopy is calculated based on half of the horizontal projection area
4. The rain canopy panels floating out of the wall are not counted as building area
5. Total area=(1)+(2)+(3)
6. Unless otherwise specified, the calculation method for engineering quantity shall be adjusted according to the above calculation formula for settlement payment
The above parameters are the manufacturer's default parameters.
If they cannot meet your needs, please contact customer service to customize your product
